Photoluminescent Pigment Yellow-green color Glow in the dark pigment CAS NO.12004-37-4
- FOB Price: USD: 10.00-13.60 /Metric Ton Get Latest Price
- Min.Order: 25 Kilogram
- Payment Terms: L/C,D/A,D/P,T/T,Other
- Available Specifications:
Great(25-10000)Metric TonGreat(10000-10000000)Metric Ton
- Product Details
Keywords
- Photoluminescent Pigment
- Glow in the dark pigment
- Yellow-green color
Quick Details
- ProName: Photoluminescent Pigment Yellow-green...
- CasNo: 12004-37-4
- Molecular Formula: SrAl2O4:Eu+2,Dy+3
- Appearance: Light yellow powder
- Application: paint, ink, resin, epoxy, plastic, toy...
- DeliveryTime: 20~30 days
- PackAge: 25kg / Kraft Paper Bag or Can Be Custo...
- Port: Shanghai ports or Ningbo ports
- ProductionCapacity: 10000 Kilogram/Week
- Purity: 99%
- Transportation: We examine from raw materials to finis...
- LimitNum: 25 Kilogram
- Grade: Industrial Grade
- Density (g/cm3): 3.4
- Appearance: Solid powder
- Daytime Color: Light yellow
- Glowing Color: Yellow-blue
- PH Value: 10-12
- Excitation wavelength: 240-440 nm
- Emitting wavelength: 520 nm
Superiority

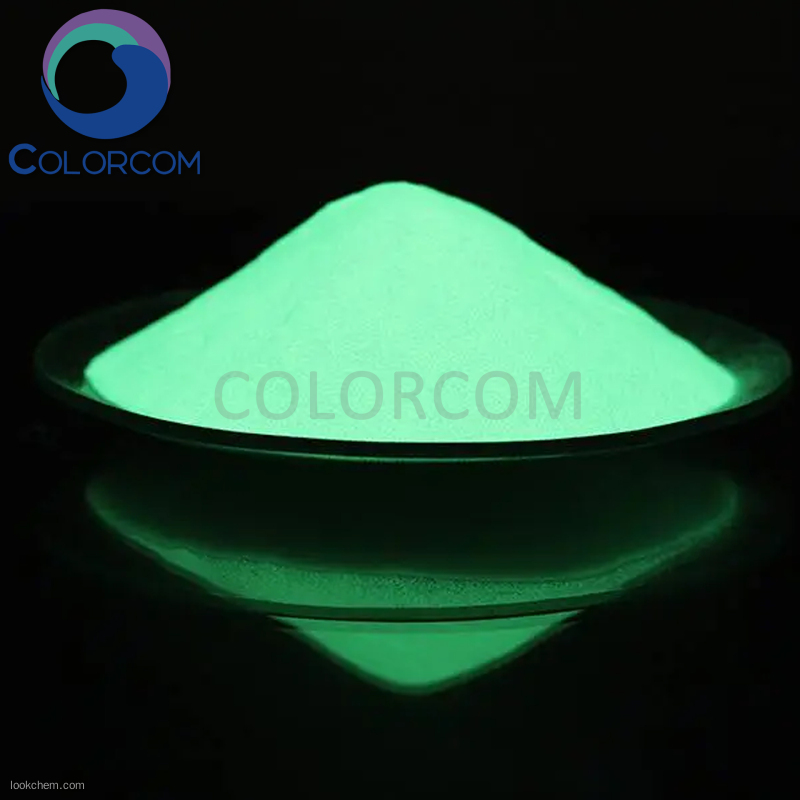

PL-YG is strontium aluminate based photoluminescent pigment, with an apperance color of light yellow and a luminance color of yellow green. Our pigment is non-radioactive, non-toxic,very weatherproof, very chemically stable and with a long shelf life of 15 years.
Details
Product Description:
PL-YG is strontium aluminate based photoluminescent pigment, with an apperance color of light yellow and a luminance color of yellow green. Our pigment is non-radioactive, non-toxic,very weatherproof, very chemically stable and with a long shelf life of 15 years.
Common Name: Photoluminescent Pigment
Chemical Name: Stronium aluminate doped with rare earth
Category: Colorant - Pigment - Photoluminescent Pigment
Appearance: Solid Powder

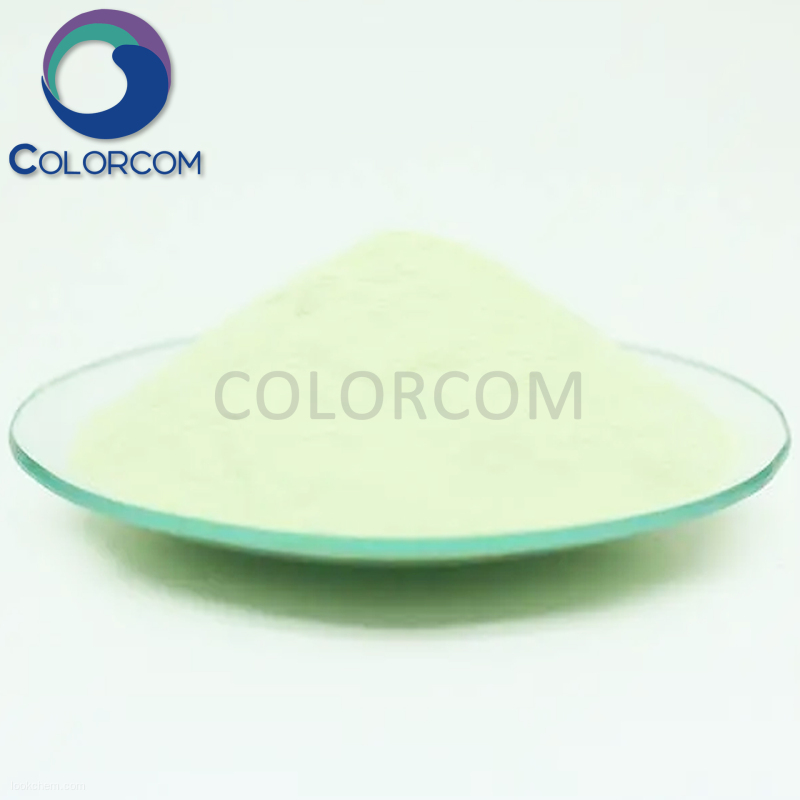

Daytime Color: Light yellow
Glowing Color: Yellow-green
Molecular Formula: SrAl2O4:Eu+2,Dy+3
Packing: 25 KGS/bag
MOQ: 25KGS
Brand Name: Colorcom
Place of Origin: China
Shelf Life: 15 Years
Application:
Customers can use this photoluminescent pigment to mix with transparent medium to make all kinds of glow in the dark product including paint, ink, resin, epoxy, plastic, toys, textiles, rubber, silicone, glue, powder coating and ceramic and so much more.
Physical Property:
CAS No.: |
12004-37-4 |
Density (g/cm3) |
3.4 |
Appearance |
Solid powder |
Daytime Color |
Light yellow |
Glowing Color |
Yellow-green |
PH Value |
10-12 |
Molecular Formula |
SrAl2O4:Eu+2,Dy+3 |
Excitation wavelength |
240-440 nm |
Emitting wavelength |
520 nm |
HS Code |
3206500 |
Specification:
Model |
Size (D50)um |
After glow intensity (mcd/m2) |
Glowing Color (Night) |
Appearance (Daytime) |
||
10 min |
60 min |
Glow time |
||||
PL-YG6B |
65-85 |
725 |
120 |
>12 hour |
||
PL-YG6C |
45-55 |
480 |
85 |
|||
PL-YG6D |
25-35 |
380 |
55 |
|||
PL-YG6E |
5-15 |
280 |
39 |
|||
PL-YG6F |
2-10 |
240 |
30 |
|||
PL-YG4B |
65-85 |
640 |
105 |
|||
PL-YG4C |
45-55 |
450 |
70 |
|||
PL-YG4D |
25-35 |
320 |
42 |
|||
PL-YG4E |
5-15 |
220 |
29 |
|||
PL-YG4F |
2-10 |
190 |
23 |
|||
PL-YG2C |
55-75 |
350 |
40 |
|||
PL-YG2D |
15-45 |
250 |
32 |
|||
PL-YG1C |
55-75 |
260 |
35 |
10 hour |
||
PL-YG1D |
15-40 |
200 |
25 |
Note:
1. Luminance test conditions: D65 standard light source at 1000LX luminous flux density for 10min of excitation.
2. Particle size B is recommended for production craft of pouring, reverse mould, etc. Particle size C and D are recommended for printing, coating, injection, etc. Particle size E and F are recommended for printing, wiredrawing, etc.
3. Yellow green photoluminescent pigment the most widely known and used glow in the dark powder, and has many derivative products including glow in the dark paint, ink, resin, plastic, fire-fighting safety signs, fishing tool, craftworks and gifts, and so on.
